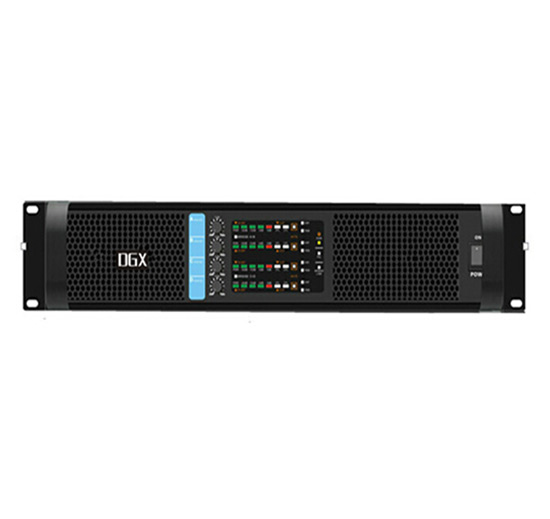

多通道DK系列2U参数
产品详细介绍
|
SPECIFICATIONS | ||||
|
Model |
DK3310 |
DK3420 |
DK4300 |
DK4400 |
|
8ΩStereo power |
300W×2+150W |
400W×2+200W |
300W×4 |
400W×4 |
|
4ΩStereo power |
450W×2+220W |
600W×2+300W |
450W×4 |
600W×4 |
|
FREQUENCY RESPONSE |
20Hz-20KHz（+/-0.4 dB） | |||
|
THD+N |
＜0.02% | |||
|
SMPTE IMD |
＜0.03% | |||
|
SLEW RATE |
40/μS | |||
|
DAMPING FACTOR |
400：1 | |||
|
Imput CMRR |
＞60 dB | |||
|
Input sensitivity |
0.3 V-0.775 V | |||
|
Input impedance |
20KΩ（BALANCE）/10KQ(UNBALANCE | |||
|
PROTECT |
LIMIT,DC,SHORT CIRCUIT,OVERHEAT,OVERLOAD,SOFTSTAR | |||
|
CONTROLS |
FRONT PANEL:2ATTENUATORS/POSWER SWITCH,REAR | |||
|
CONTRCTION |
STEEL CHASISIS | |||
|
HEIGHT |
2U | |||
|
Weight |
19kg |
19.5kg |
21kg |
22kg |
|
Dimensions(mm) |
57×61×15(cm) | |||
|
SPECIFICATIONS | |||||||||
|
Model |
DK3350 |
DK3450 |
DK3600 |
DK4500 |
DK4600 | ||||
|
8ΩStereo power |
350W×2+700W |
450W×2+1000W |
600W×2+1200W |
500W×4 |
600W×4 | ||||
|
4ΩStereo power |
550W×2+1000W |
650W×2+1500W |
900W×2+2000W |
700W×4 |
900W×4 | ||||
|
FREQUENCY RESPONSE |
20Hz-20KHz（+/-0.4 dB） | ||||||||
|
THD+N |
＜0.02% | ||||||||
|
SMPTE IMD |
＜0.03% | ||||||||
|
SLEW RATE |
40/μS | ||||||||
|
DAMPING FACTOR |
500：1 | ||||||||
|
Imput CMRR |
＞60 dB | ||||||||
|
Input sensitivity |
0.3 V-0.775 V | ||||||||
|
Input impedance |
20KΩ（BALANCE）/10KQ(UNBALANCE | ||||||||
|
PROTECT |
LIMIT,DC,SHORT CIRCUIT,OVERHEAT,OVERLOAD,SOFTSTAR | ||||||||
|
CONTROLS |
FRONT PANEL:2ATTENUATORS/POSWER SWITCH,REAR | ||||||||
|
CONTRCTION |
STEEL CHASISIS | ||||||||
|
HEIGHT |
3U | ||||||||
|
Weight |
24kg |
25kg |
25.5kg |
22.5kg |
23kg | ||||
|
Dimensions(mm) |
57×61×19(cm) | ||||||||
